上海中心大厦获LEED白金级认证 - Shanghai Tower Achieves LEED-CS Platinum
发布时间:2021-11-03    1859浏览 房价资讯


Shanghai Tower has been certified LEED® Platinum for Core and Shell by the U.S. Green Building Council. This is the highest achievable level of certification by Leadership for Energy and Environmental Design (LEED), an internationally recognized rating system that honors excellence in the design, construction, and operation of green buildings. Ranked as China’s tallest building, this new certification makes Shanghai Tower one of the greenest supertall buildings on the planet.

上海中心大厦获美国绿色建筑认证委员会LEED-CS白金级认证,美国绿色建筑协会最高级别的认证,是全球公认的绿色建筑设计、施工、运营指标。获得此殊荣的上海中心大厦是全中国最高的建筑,也是全球最绿色环保的超高层建筑之一。

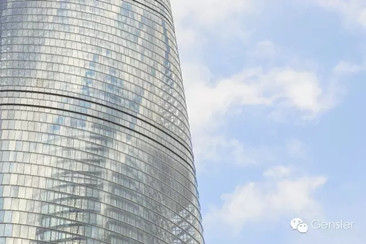

Sustainability has been at the core of project from conception through construction. Perhaps the most important sustainable feature is the building’s double skin façade. The continuous glass skin maximizes daylight, reducing the need for artificial lighting. The transparent second skin insulates the building, reducing energy use for heating and cooling. These and many other sustainable components significantly reduce the building’s carbon footprint by an estimated 34,000 metric tons per year.

上海中心大厦设计团队从概念设计到施工都以绿色建筑为核心。大楼最重要的永续设计元素是独特的双层幕墙,包裹塔楼的玻璃幕墙充分利用自然采光,减少照明用电;透明的外墙为建筑减低热传导,减少空调供暖耗电。这些还有其他许多绿色措施大幅降低了项目的各项能源消耗,预计每年能减少34,000吨的碳足迹。

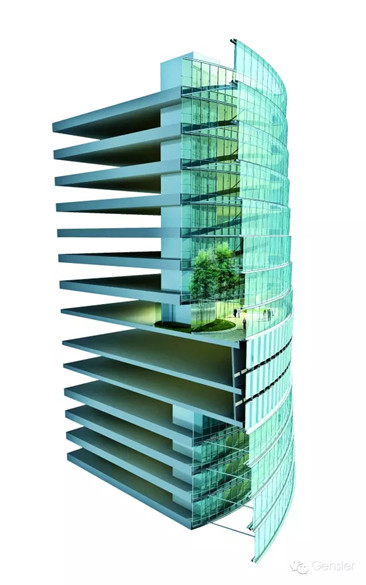

The building’s double skin allows for the development of seven “sky gardens” within the atria, each spanning 12-15 stories. Intended to evoke the traditional courtyards of Shanghai, these spaces are open to the public and versatile enough to host events. Shops, restaurants, and urban amenities satisfy occupants' every need. More than a mixed-use building, the tower is a city within a city. Standing at 632-meters tall, Shanghai Tower completes a distinctive skyline that defines China’s most futuristic city.

双层幕墙内每12-15楼设有空中花园。这七个空中花园灵感来自于上海独有的里弄,而且是公共空间,可以供大众使用。花园内未来还会有商店、餐厅等,让大楼内的人们可以忙里偷闲。上海中心不只是超高层综合体,而是个楼中之城。总高度632米的上海中心大厦完成了浦东陆家嘴金融贸易区的天际线,代表着中国未来的无限可能。


Shanghai Tower boasts a number of unique green design features that positively impact the building and the broader community. These features include:

上海中心大厦还有其他许多绿色建筑技术,造福大楼也造福周边社区:

1One third of the site is green space, with extensive landscaping that cools the grounds

三分之一的平地空间是绿地,整体景观绿化能帮助降温

2Exterior lighting for the tower is powered by 270 wind turbines built into the façade

外墙灯光用电来自于楼顶的270座风力发电机。

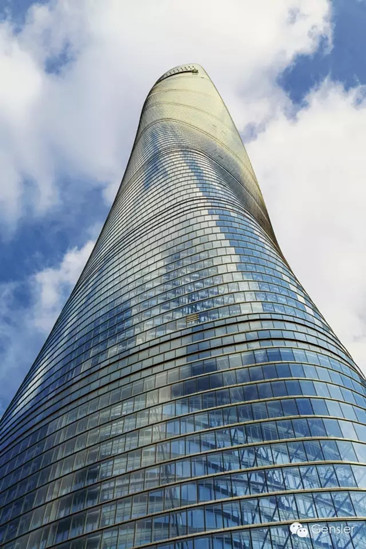

3The tower rotates at a 120-degree turn, optimal for minimizing wind loads. This refined form saved USD58 million in structural costs

塔身形体自下而上旋转,能够最大限度地降低风荷载。这一几何外形为大厦节省了5800万美元的结构材料开支


4The building’s asymmetrical form, tapering profile, and rounded corners allow it to withstand typhoon-winds, common in Shanghai

不对称外立面、锥形建筑轮廓和圆角设计帮助大厦抵御上海常见的台风

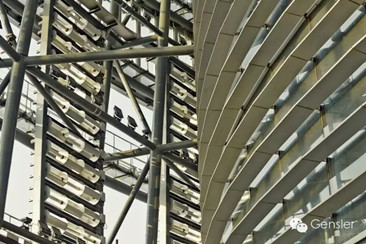

5A double curtain wall suspends from above on massive cantilevered trusses, stabilized by hoop rings and struts

Gensler为上海中心大厦设计的创新幕墙从上方的巨形外伸臂桁架悬挂下来,利用箍筋支撑稳固幕墙结构


6A total of 43 sustainable strategies reduce energy consumption by 21 percent

大厦设计所采取的节能策略措施可节约21%的能源消耗


7A power plant fuelled by natural gas provides onsite electricity and heat energy to low zone areas

天然气供电系统为低区提供电力和热能
